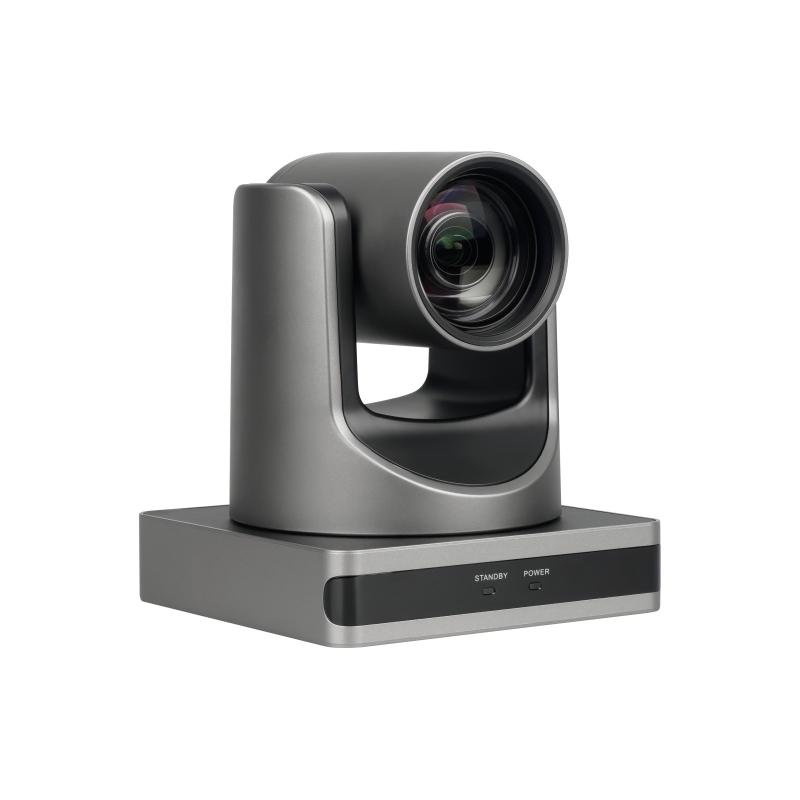

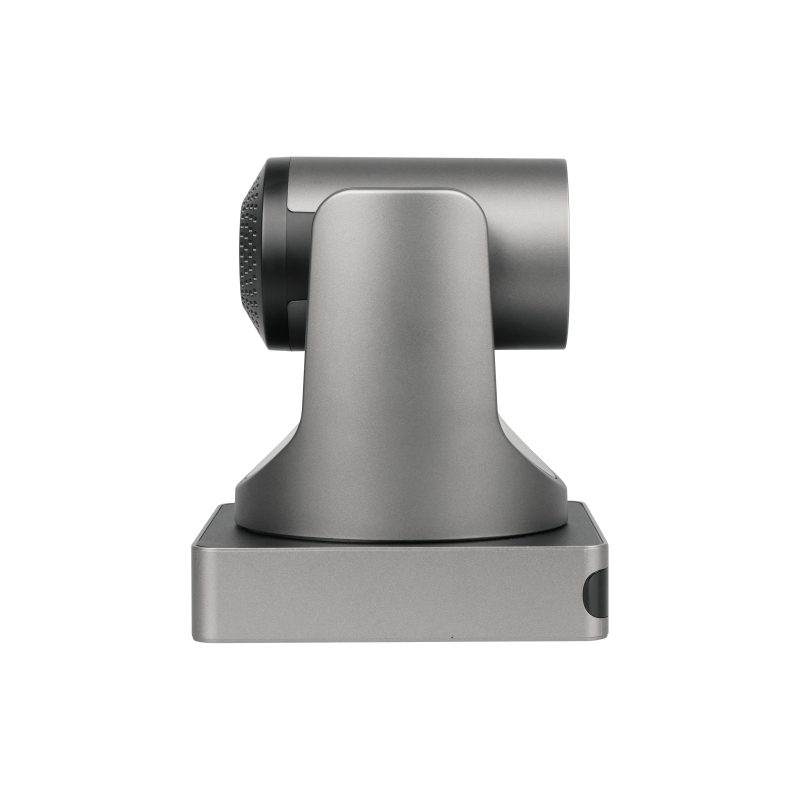

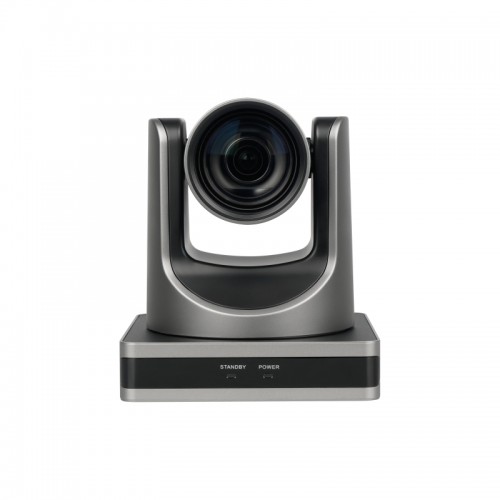

MAXHUB UC Camera 1080p PTZ
MAXHUB UC Camera 1080p PTZ. The MAXHUB UC P15 camera brings effortless access to mid-to-large video conferencing. Combining exceptional 1080p image quality with premium 12x optical zoom, the P10 brings every conversation to life.
| Product Specification | Â |
| Product Feature | Â |
| Full Function Usb Port: | Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support for encoding output, support UVC v1.5 protocol. |
| 1080P Full Hd: | Apply Panasonic's 1/2.8 inch, 2.07M effective pixels high quality HD CMOS sensor, can reach maximum 1920×1080 high resolution and achieve quality image. |
| Ultra High Frame Rate: | Output frame frequency is up to 60fps at 1080P. |
| 72.5°Wide-Angle Lens + 16X Digital Zoom: | Use 72.5°wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom. |
| Low-Light: | High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear. |
| Support Poe: | Wired networks support PoE power supply. Control, power supply, video, and audio can be completed using only one cable. |
| Remote Control: | Multiple control modes, using RS232 (RS485 optional) serial port, network and USB to control the camera. |
| H.264 Slice/ H.264 Svc Support: | Support Slice and SVC encoding mode, adapts to video conference of advance USB application. |
| Dual Stream: | Support two stream output (YUY2, MJPEG, H.264 each of both), reduce the host codec pressure |
| Abound And Perfect Interface: | Supports HMDI, USB3.0(Type-C), and network ports to output 4K videos at the same time. |
| Three Modes Of Power Supply: | Support USB 5V power supply, 12V power adapter power supply and PoE power supply |
| Camera Parameter | Â |
| Pixel | 2.07M |
| Video System | HDMI: 1080P30,1080P25 |
| Sensor | 1/2.8 inch, CMOS |
| Scanning Mode | Progressive |
| Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Automatic, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual, |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction. |
| Video S/N | ≥55dB |
| Horizontal Angle Of View | 72.5°~ 6.9° |
| Vertical Angle Of View | 44.8°~ 3.9° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30°~ +90° |
| Pan Speed Range | 2.7°~ 35.7°/s |
| Tilt Speed Range | 2.7°~ 31.5°/s |
| H & V Flip | Support |
| Image Freeze | Support |
| Number Of Preset | 255 |
| Preset Accuracy | 0.1° |
| Video Format | YUY2 (ISOC)：max 1080P@60fps H.264 AVC：max 1080P@60fps H.264 SVC：max 1080P@60fps MJPEG：max 1080P@60fps |
| USB Featured | Â |
| Operate System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Color System / Compression | YUY2 / H.264 / MJPEG |

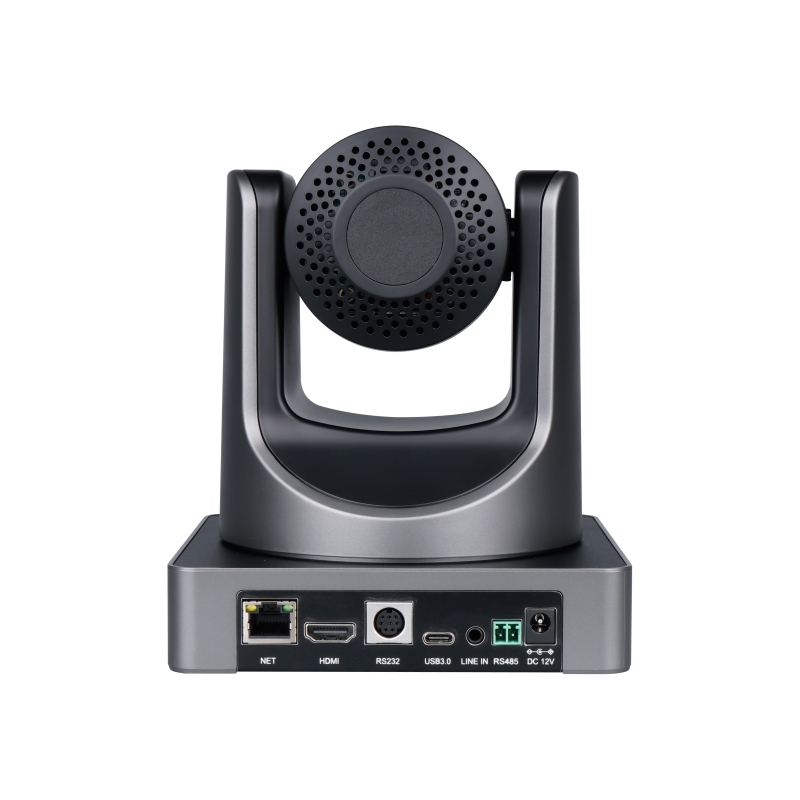

| I/O Port | Â |
| Rj45 | 1 |
| Hdmi | 1 |
| Rs232 In | 1 |
| Usb 3.0 (Type-C) | 1 |
| Line In | 1 |
| Rs485 | 1 |
| Dc In | 1 |
| Physical Specifications | Â |
| Dimension L×H×D | 144×144×166.89mm |
| Net Weight | 1.41Kg |
| Power | Â |
| Input Voltage | DC 12V/DC 5V/PoE（802.3af） |
| Current Consumption | 12V 1.0A（Max）/5V 1.5A（Max） |
| Power Consumption | 12W（Max) |
| Accessories | Â |
| Adapter | ×1 |
| Remote Control | ×1 |
| Usb Cable | ×1 |
| Lens Cover | ×1 |
| Wall Mount Bracke（T Screw Pack） | ×1 |
| Environmental Conditions | Â |
| Operation Temperature | -10℃~40℃ |
| Storage Temperature | -40℃~ 60℃ |
| Statement | Size and weight vary by configuration and manufacturing process, please refer to the actual product. Â The product images are for illustrative purposes only and may slightly differ in appearance, colour, size, etc. from the actual product. Â The description, illustrations, etc. in this document may subject to change in accordance with the latest product specification and performance. Â Should the above-mentioned change in the document become necessary, the document may be updated without written notice. |
